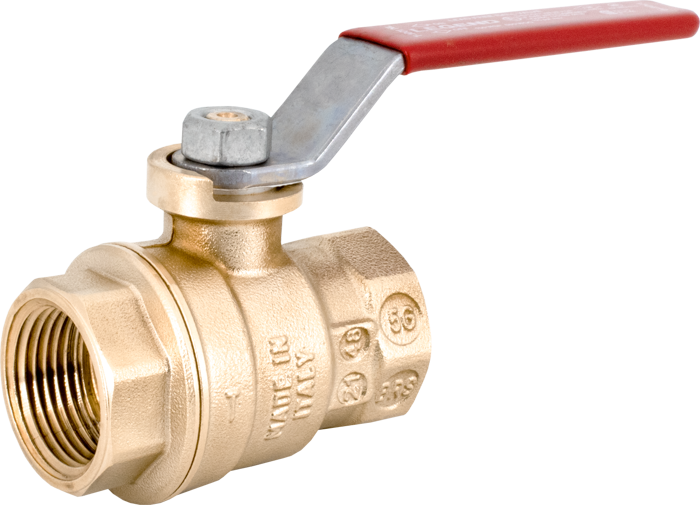

1-1/4 LF BRASS THRD FULL PORT BALL VALVE
101-026NL
928409
66254508173
- 1-1/4 INCH NOMINAL SIZE
- UL, CSA (CANADA AND US), FM, NSF/ANSI 61G, ANSI/ASME B1.20.1, MSS SP-110, ISO 9002 APPLICABLE STANDARD
- POTABLE WATER, PLUMBING APPLICATION
- ASTM A510 UNS G10060 DACROMET COATED STEEL HANDWHEEL NUT, TFM PTFE ANTI-FRICTION WASHER/THRUST WASHER, FLUOROCARBON STEM O-RING, CW510L UNS C28500 FORGED BRASS END ADAPTER, ASTM A510 UNS G10060 DACROMET COATED STEEL LOCKING DEVICE, BOTTOM LOADED BLOWOUT PROOF STEM INCLUSIONS/FEATURES
- CW510L UNS C28500 FORGED BRASS BODY MATERIAL
- 150 PSI WSP, 600 PSI CWP PRESSURE RATING
- FEMALE THREADED X FEMALE THREADED END CONNECTION
- ASTM A510 UNS G10060 DACROMET COATED STEEL HANDLE MATERIAL
- 3.3 INCH END TO END DISTANCE
- LEVER HANDLE ACTUATION TYPE
- TFM PTFE SEAT MATERIAL
- CW510L UNS C28500 FORGED BRASS STEM MATERIAL
- FULL PORT TYPE
- CW510L UNS C28500 FORGED BRASS BALL MATERIAL
- LEAD-FREE
- T-1001NL MODEL
66254508173
