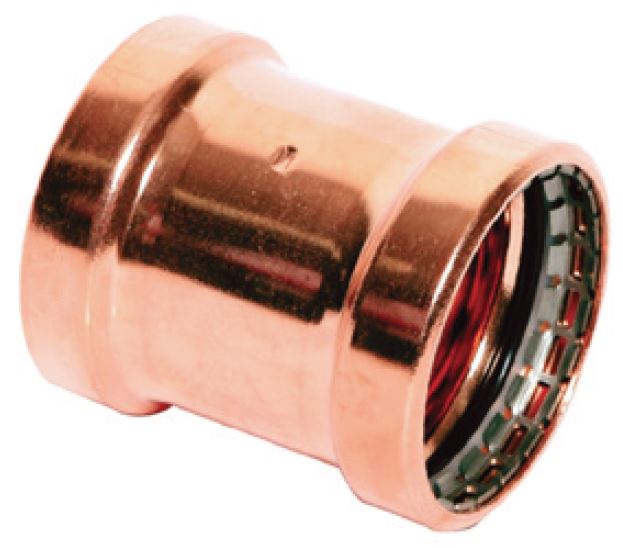

2-1/2 PROPRESS COUPLING W/STOP
450-509P
913041
66254512205
- C12200/C11000 COPPER ALLOY MATERIAL
- 2-1/2 INCH SIZE A
- 2-1/2 INCH SIZE B
- ANSI/ASME B16.51/B16.22/B1.20.1, NSF/ANSI 61, UPC/IAPMO, CSA, CUPC APPLICABLE STANDARD
- POTABLE WATER, PLUMBING APPLICATION
- WROT PROCESS
- 0 TO 250 DEG F TEMPERATURE RATING
- ASTM B75/B152 MATERIAL SPECIFICATION
- 200 PSI CWP, 15 PSI SWP PRESSURE RATING
- LARGE PRESS X LARGE PRESS END CONNECTION
- YES
- EPDM O-RING GASKET DETAILS
- LEAD-FREE
- INCLUDES STOP, STAINLESS STEEL GRIP RING, ACETAL RESIN GUIDE RING
