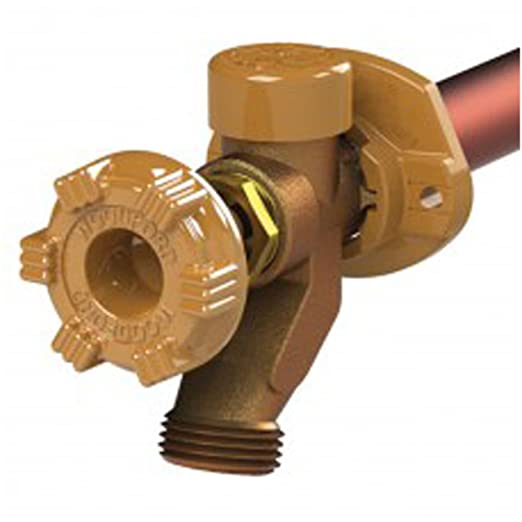

MODEL 17 WALL FAUCET 1/2 PX INLET 6 INCH
17PX-6-PH
59524
67109007289
- FREEZELESS WALL TYPE
- 1/2 INCH X 3/4 INCH NOMINAL SIZE
- ASSE 1019 TYPE C, BOCA-ES, IAPMO APPLICABLE STANDARD
- RESIDENTIAL, WATER APPLICATION
- MAXIMUM 120 DEG F TEMPERATURE RATING
- ADJUSTABLE PACKING NUT, FULL CIRCLE THREADS ON VALVE BODY AND RETAINER, POLYCARBONATE ADJUSTABLE FLANGE, POLYCARBONATE CAP, POLYCARBONATE VACUUM BREAKER, STANDARD O SIZE SEAT WASHER INCLUSIONS/FEATURES
- MAXIMUM 125 PSI PRESSURE RATING
- 1/2 INCH PEX X 1/2 INCH PEX X 3/4 INCH MHT END CONNECTION
- POLYCARBONATE HANDLE MATERIAL
- HANDWHEEL ACTUATION TYPE
- STAINLESS STEEL SEAT MATERIAL
- 6 INCH ROUGH-IN
- NON-ST. IMPREGNATED PACKING SEAL/PACKING MATERIAL
- SHIPPING WEIGHT 1.3 LB
- 17 MODEL
67109007289
PLBG
