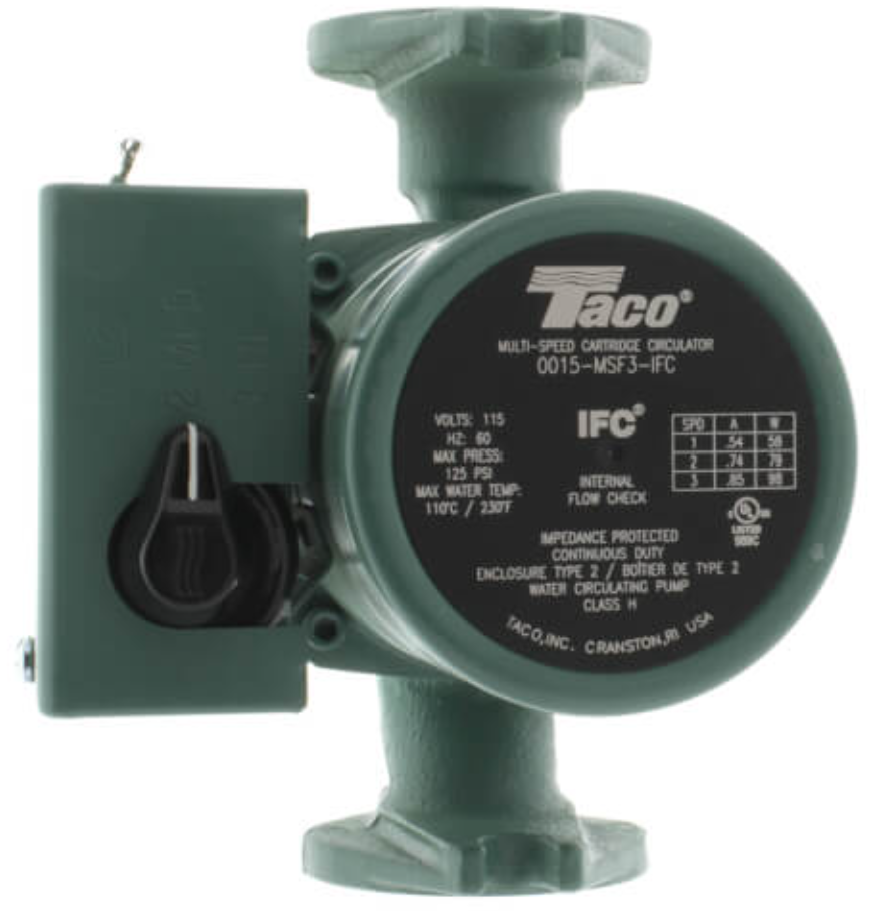

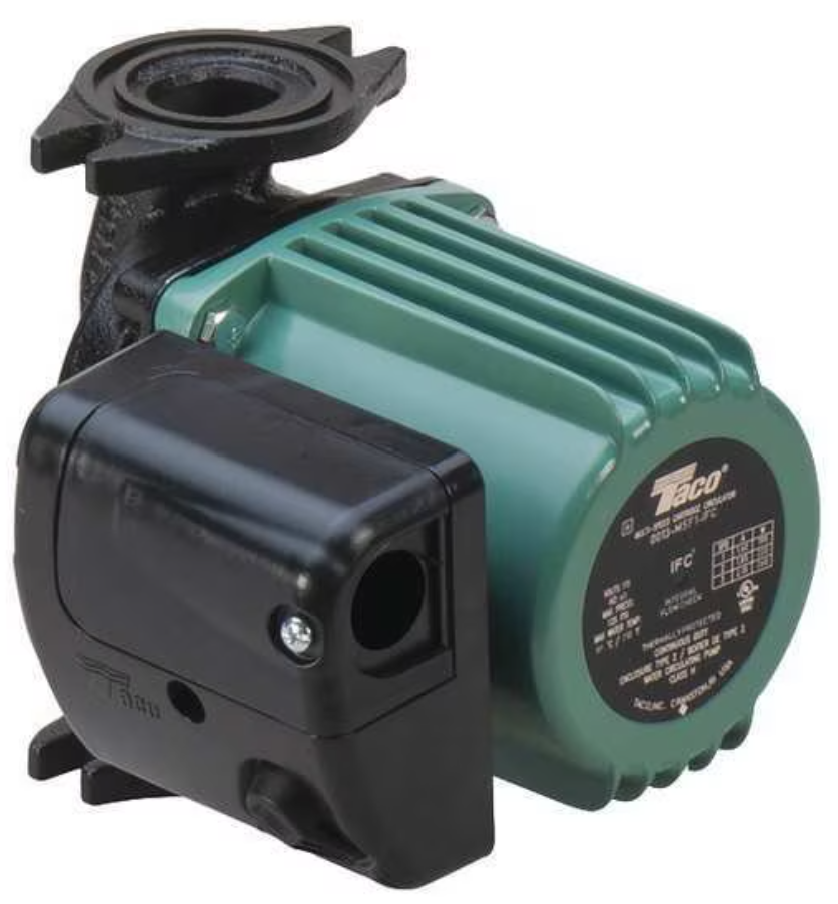

TACO 0015-MSF3-IFC 3-SPD CIRC PUMP
0015-MSF3-IFC
535633
68775204333
- 3-SPEED TYPE
- 6-1/2 INCH LENGTH X 5-3/8 INCH WIDTH X 6-3/8 INCH HEIGHT OVERALL DIMENSIONS
- 115 VOLT AC 60 HERTZ 1-PHASE 0.54/0.74/0.85 AMP INPUT SUPPLY RATING
- 18 GPM FLOW RATE
- UL (CANADA AND US), ANSI/NSF 372 APPLICABLE STANDARD
- RESIDENTIAL, HYDRONIC HEATING SYSTEM, FRESH WATER SYSTEM, INDOOR APPLICATION
- 40 TO 230 DEG F TEMPERATURE RATING
- STAINLESS STEEL CARTRIDGE, EPDM O-RING SEAL, INTEGRAL FLOW CHECK ACETAL BODY AND PLUNGER INCLUSIONS/FEATURES
- 125 PSI PRESSURE RATING
- 1/20 HP POWER RATING
- MECHANICAL SEAL EXCLUSIONS
- FLANGED X FLANGED END CONNECTION
- 3250 RPM SPEED RATING
- CERAMIC SHAFT MATERIAL
- PERMANENT SPLIT CAPACITOR, IMPEDANCE PROTECTED MOTOR TYPE
- 17 FOOT DISCHARGE HEAD
- 3/4 INCH, 1 INCH, 1-1/4 INCH, 1-1/2 INCH DISCHARGE SIZE
- CAST IRON CASING MATERIAL
- NON-METALLIC IMPELLER MATERIAL
- 3/4 INCH, 1 INCH, 1-1/4 INCH, 1-1/2 INCH SUCTION SIZE
- LEAD-FREE
- 0015 MODEL
68775204333
